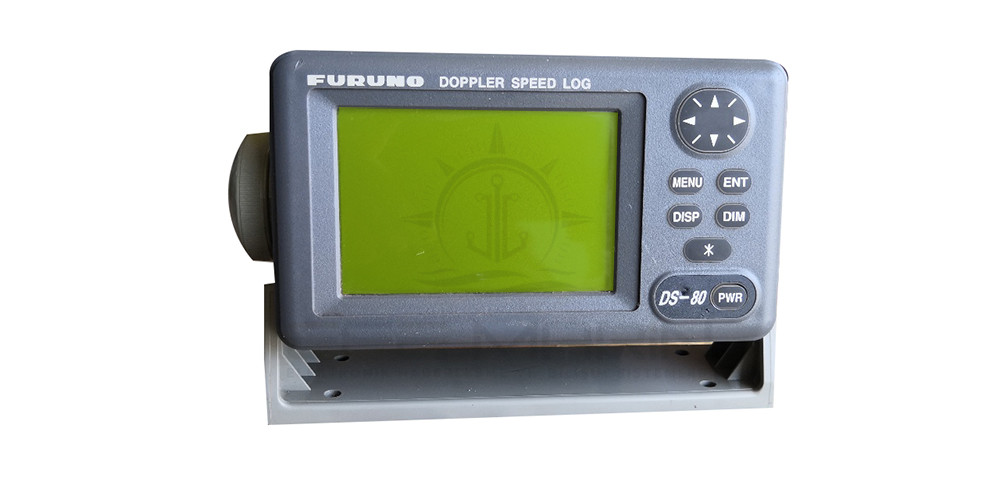

Speed and distance run indicated on a large illuminated LCD display
�Compact display unit and transducer
�High accuracy by utilizing the Doppler principle, paired beam eliminating effect of pitching,
and velocity correction for change of water temperature
Easy speed correction at mile post run
�
Speed output to ARPA, radar, ECDIS, AIS, VDR, GMDSS equipment, etc.
�
Complies with IMO standards MSC.96 (72), A.824 (19), A.694 (17), IEC 61023 and other related standards
�
Fully meets SOLAS carriage requirement for ships over 300GT
�
Fits to the hull either directly or with a gate valve
SPECIFICATIONS
Product Name
DOPPLER SPEED LOG
Measuring System
Paired-beam Doppler log, 1 MHz
Display unit
4.5" (95 x 60 mm) Monochrome LCD 120 x 64 pixels
Character size:
15 or 21 mm high selectable
Speed Range
Forward:
0 - 40 kn, 0.1 kn steps
Astern:
0 - 10 kn, 0.1 kn steps
Distance Run
0-999,999.99 NM, resettable to any value.
Accuracy
Speed through-the-water (STW): 1%, display resolution 0.1 kn Distance run: 1%, in steps of 0.1 NM
Water Depth
Deeper than 3 m
Correction
Sound velocity:
Automatic correction for change of water temperature
