SAILOR RT-4822 VHF DSC

VHF / DSC

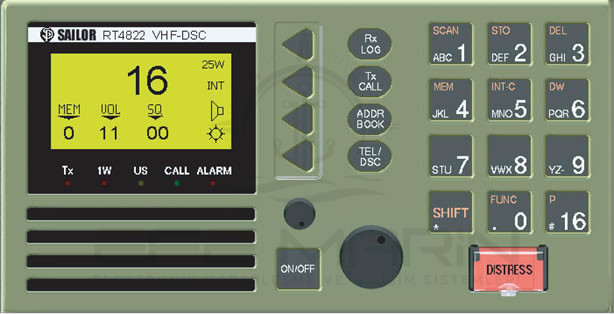

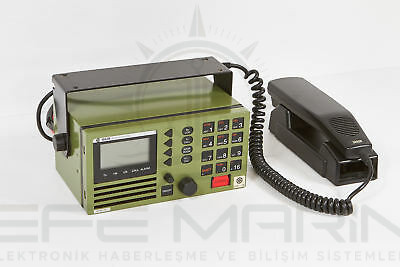

The SAILOR RT4822 VHF DSC simplex/semiduplex VHF radiotelephone with built-in DSC is a part of Sailor’s compact System 4000 GMDSS solution. SAILOR RT4822 is the latest version of the most famous VHF on the seven seas, from one of the leading and most experienced manufacturers of maritime communication equipment in the world.

Teklif Formu

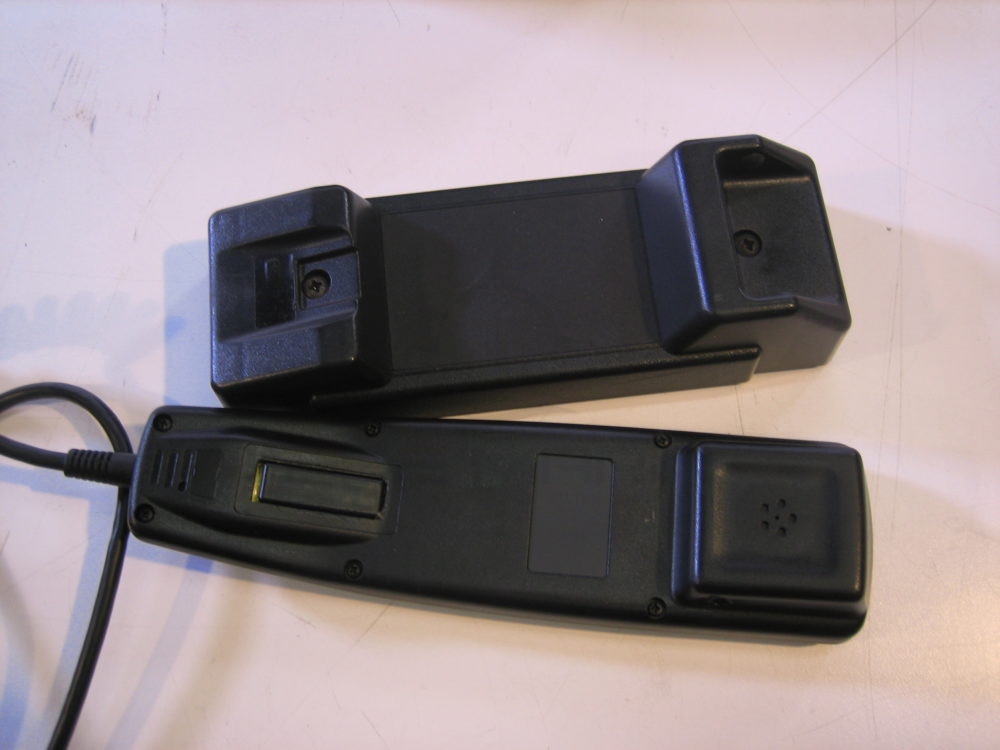

The SAILOR RT4822 VHF DSC is specially suitable for the professional maritime business. The radio is an advanced DSC unit (class A) with all the necessary equipment built in to one compact unit and therefore ideal for areas with limited space as it is the case on most vessels. In a basic configuration the SAILOR RT4822 includes a transceiver unit and a handset. The SPARC-bus interface, an advanced balanced data and AF interface, can be used to interconnect multiple control units and for exterior computer based control/programming options. The maximum distance between transceiver unit and handset control unit maybe 40 m in 12V DC installations, in 24V DC installa- tions up to 80 m. The Sailor VHF radio combines transmitter, receiver and a 4W loudspeaker in one. The set is equipped with an audio amplifier capable of delivering an additional 6W into an external loudspeaker. The nominal system power supply is 12V DC. By means of SAILOR N163S and/or N420, the system can be powered from the AC mains or a 24V DC battery. A standard NMEA interface for connection to on-board navigational equipment is available in the transceiver option connector.

GENERAL

Normal channels:

All int. ch’s for 25 kHz operation Up to 55 private channels

Opt. channels:

All int. ch’s for 12.5 kHz operation Up to 224 ch’s with up to 54 private ch’s

Channel spacing:

25 kHz / opt. 12.5 kHz

Frequency range:

150.8 MHz - 163.6 MHz

Operating modes:

Simplex/Semi-duplex

Modulation:

G3EJN for telephony receiver G2B for DSC signaling

DSC operation:

According to Rec. ITU-R M. 541-6 and Rec. ITU-R M. 689.2

DSC Protocol:

According to Rec. ITU-R M. 493-7 class A

Navigator interface:

NMEA 0183, GGA, GLL, ZDA

Frequency stability:

+ 10 ppm/opt. + 5 ppm

Aerial connectors:

Standard 50Ω female, SO239

Temperature range:

-15 °C to +55 °C

Supply voltage:

13.2V DC Nominal

Supply range:

10.8V DC to 15.6V DC

Supply current:

Stand-by 0.27A

Transmitter on 1.6A (low power)

Transmitter on 5.4A (high power)

Transceiver dimen.:

100x200x176 mm

Transceiver weight:

2.5 kg

RECEIVER

Sensitivity for 12 dB SINAD:

-119 dBm or 0.25 μV p.d.

Symbol error rate below 1x10-2 at:

-119 dBm or 0.25 μV p.d.

AF rated power Output 1:

4W/4Ω

Output 2:

6W/4Ω

Signal/noise ratio:

Better than 40 dB

AF response:

-6 dB/octave

Spurious emission:

Below 2 nW

Spurious resp. att.:

More than 70 dB

Intermodulation att.:

More than 68 dB

Blocking:

More than 90 dBμV

Co-channel rejection:

Better than -10 dB

Adj. ch. selectivity:

More than 70 dB

TRANSMITTER

RF output power:

High 25W + 0 dB to -0.5 dB

Low 0.9W + 0.5 dB to +1 dB

Adj. ch. power:

Below -70 dBc

Spurious radiation:

Below 0.25 μW

Cabinet radiation:

Below 0.25 μW

AF response:

+6 dB/octave

Distortion:

Below 5%

Signal/noise ratio:

Better than 40 dB

Modulation:

1700 Hz ± 400 Hz

AF frequency error:

Below + 10 Hz

Residual DSC-mod.:

Below 26 dB
